Band pass filter

Band pass filter

product description

The interference filter can transmit light in a very narrow or clearly defined transmission band, or reflect the desired wavelength region. Light outside this area will be blocked. Filters are used in many optical instruments, such as spectrometers and monochromators.
The long wave pass filter is designed to pass higher wavelengths in one band and reflect shorter wavelengths, while the short wave pass filter is designed to pass a shorter wavelength and reflect higher wavelengths.
ICC in the 5.0μm and 5.5μm IR long pass filters for PIR sensors and radiation monitors, and the short pass for flame detectors or gas analyzers made of sapphire, fused silica, silicon and bk7 glass Has extensive experience in filters.

Applications :

Product Advantage :

ICC using different coating technologies to meet user applications, such as hard film filters with high damage thresholds for laser systems, and soft film filters for biochemical analyzers, can also be used in conjunction with metalized windows, which are suitable for Miniature bolometer, material-based infrared imaging equipment germanium, silicon, zinc sulfide, sapphire and other materials cover Au, PD, Ni, Ti, PT and other films.

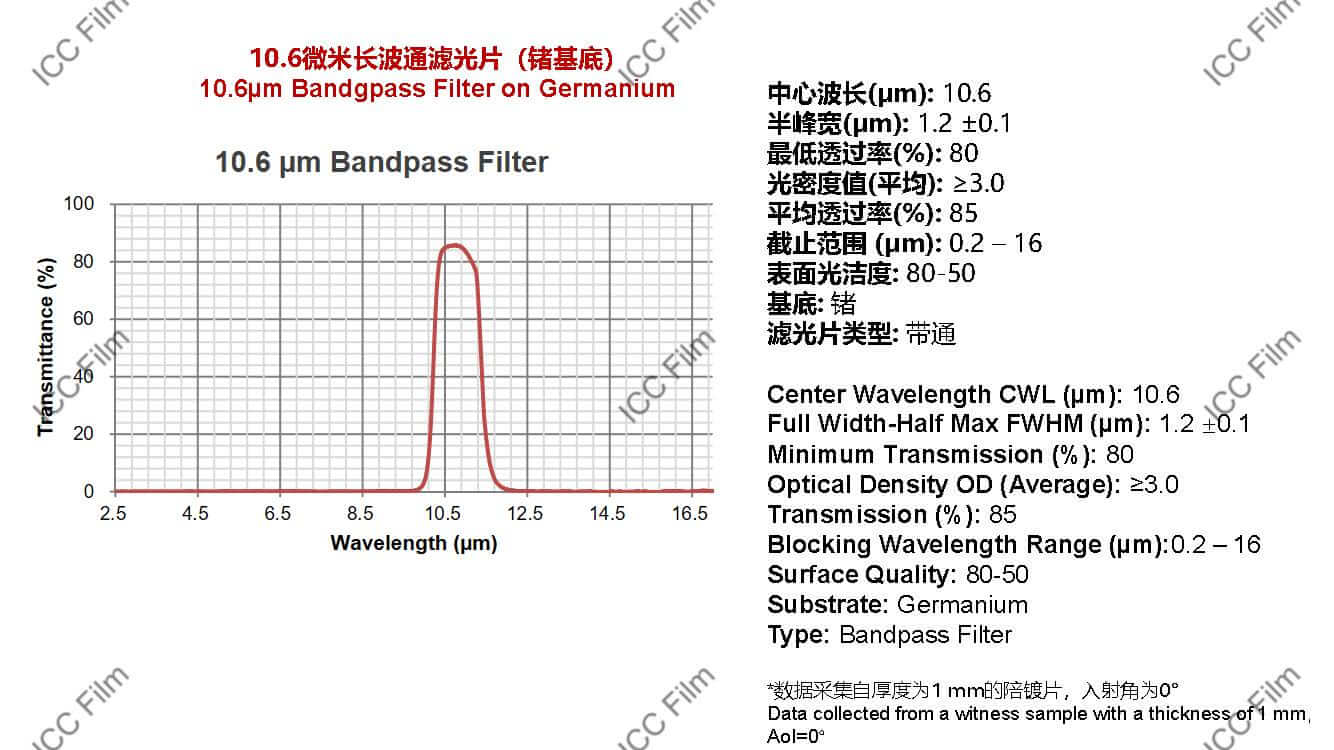

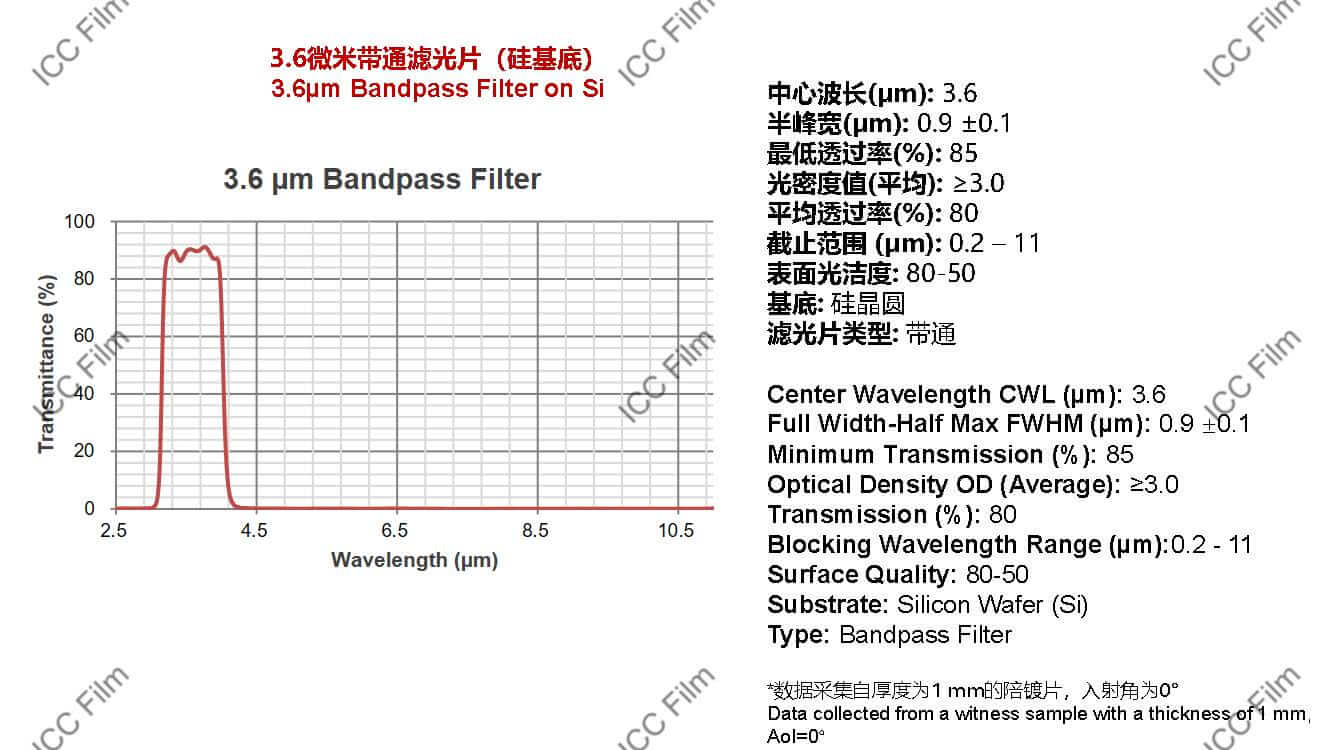

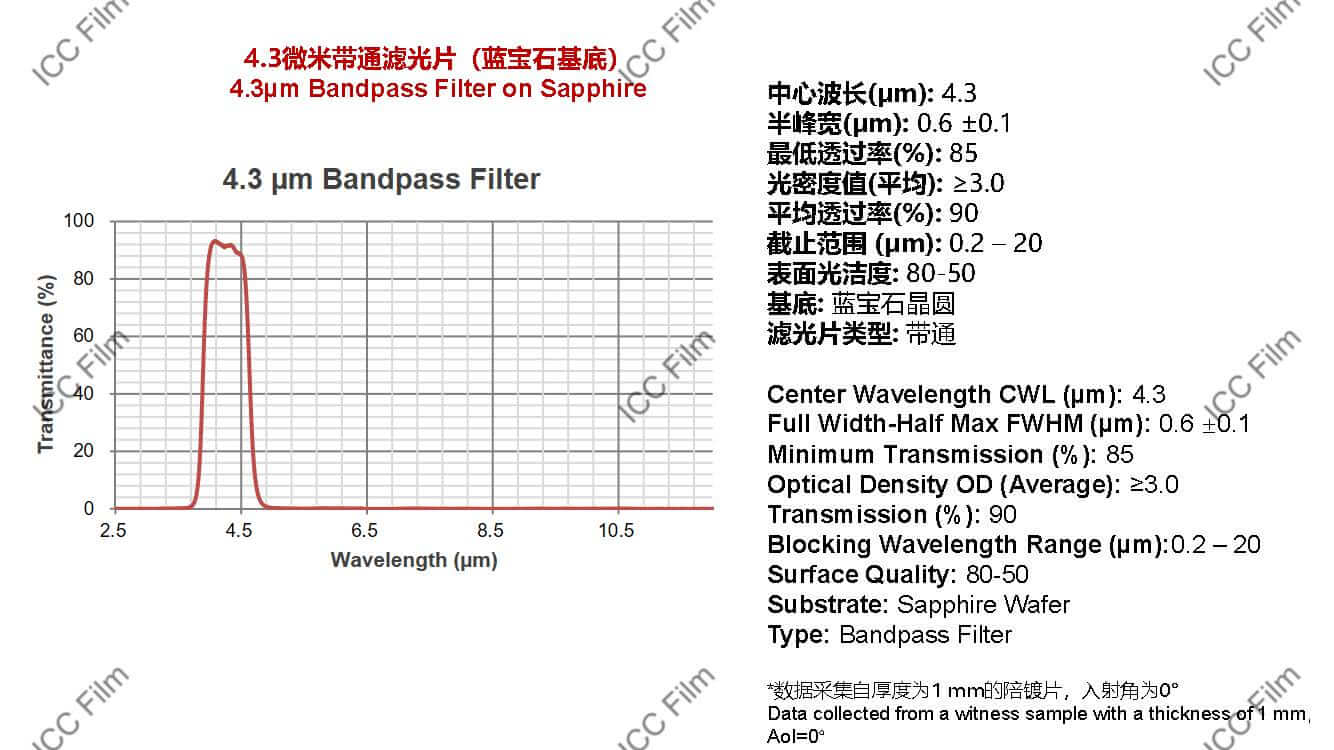

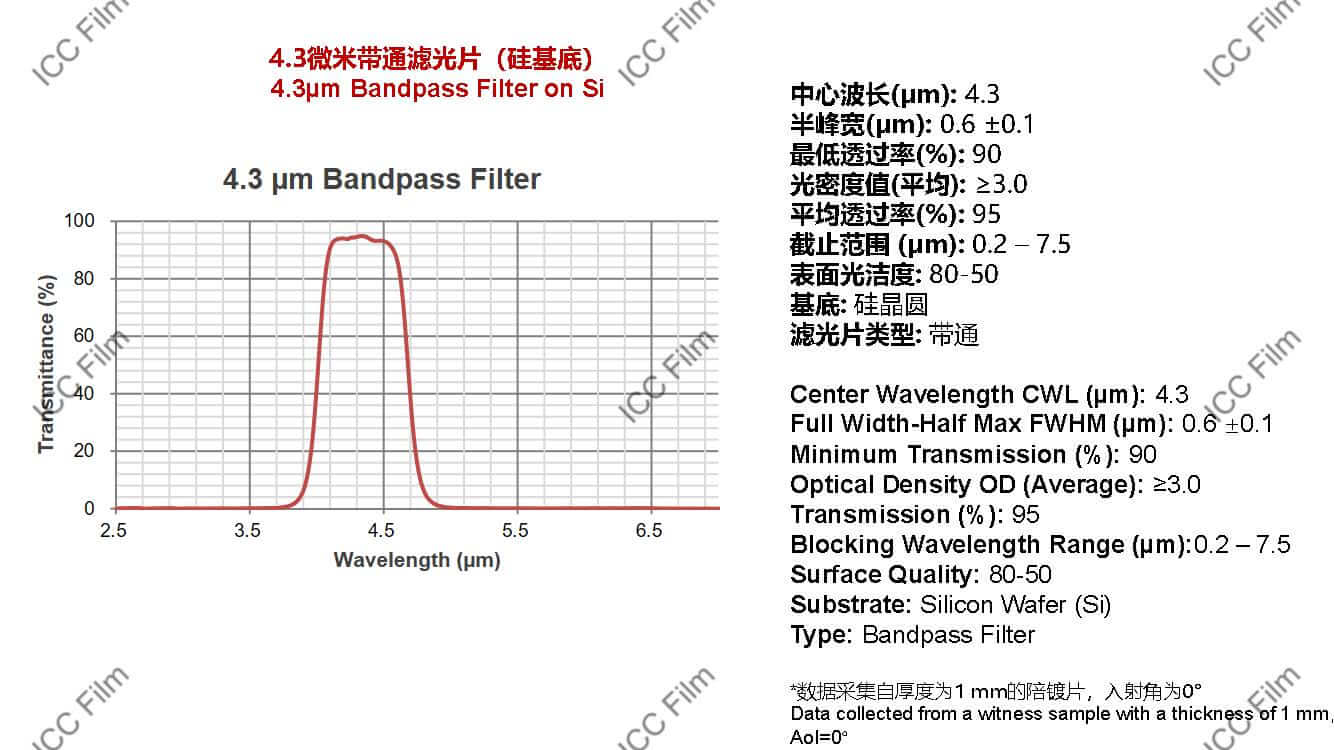

Product Parameters :
