polarization splitting prism
product description
polarization splitting prism
Base material: Fused quartz, K9 glass
Face shape：:<λ/10 @ 632.8nm
Degree of finish：40-20
Chamfer：0.5mm, 45°
Coating：Electron beam deposition multilayer dielectric coating
Angle of incidence：0°±2°
Clear aperture :> 85% diameter

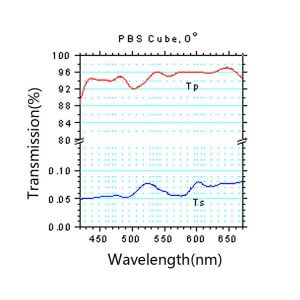

Polarization transmittance: Tp≥98%; Ts≤0.2%
extinction ratio: Tp:Ts>500:1
Antireflection film on each passing surface:R<0.25%
Applications :
Product Advantage :
Product Parameters :
|
wavelength(nm) |
|
632.8 |
|
780 |
|
830 |
|
852 |
|
1064 |
|
1310 |
|
1550 |
|
420-470 |
